PM1310 1x2 PLC Splitter 50 50 Polarization Maintaining Optical Splitter Low Insertion Loss High Return Loss FC APC

Wavelength : 1310nm

Operating Temperature : -5～+70°C

Polarization Extinction Ratio : ≥20dB

Insertion Loss : ≤3.9dB

Contact Now

PM1310 1x2 PLC Splitter 50 50 Polarization Maintaining Optical Splitter Low Insertion Loss High Return Loss FC APC

Product Overview:

This 1×2 polarization-maintaining (PM) equal-split PLC splitter operates in the 1310nm wavelength band. It utilizes PM1310 Panda polarization-maintaining fiber and FC/APC connectors, supporting a 50:50 optical power split ratio.

Key Features:

Parameter	1×2
Wavelength (nm)	1310
Operating Bandwidth (nm)	±15
Insertion Loss (dB)	≤3.9
Tap Ratio (%)	50%
Polarization Extinction Ratio PER (dB)	≥20
Fiber Type	PM1310 Panda fiber for 1310nm
Pigtail	Input 0.5m, Output 1m, 900um Loose tube/FC/APC
Return Loss (dB)	≥50
Power Handling (mW)	≤300
Operating Temperature (°C)	-5～+70
Storage Temperature (°C)	-40～+80
Dimensions (mm L×W×H)	60×7×4

1×2 PM equal-split PLC splitter
Operating wavelength: 1310nm
Split ratio: 50:50
Fiber type: PM1310 Panda PM fiber
Insertion loss: ≤4.2dB
Extinction ratio: ≥20dB
Return loss: ≥50dB
Max. optical power: ≤300mW
Connector type: FC/APC
Input fiber length: 0.5m
Output fiber length: 1.0m
Buffer: 900μm white Hytrel loose tube
Alignment: Slow axis aligned to connector key
Package dimensions: 60×7×4mm
Operating temperature: -5 to +70°C
Storage temperature: -40 to +80°C

Applications:

PM1310 1x2 PLC Splitter 50 50 Polarization Maintaining Optical Splitter Low Insertion Loss High Return Loss FC APC

Polarization-maintaining optical communication systems
Polarization-sensitive optical path distribution
Fiber optic sensing systems
Interferometric measurement systems
Coherent communication systems
Laser beam splitting
Optical test and measurement equipment
R&D and production of PM components
Fiber optic gyroscope systems
High-stability experimental optical paths

Real-time monitoring and forecasting:

Product Tags:

PM1310 1x2 PLC splitter

Polarization maintaining optical splitter

FC APC PLC splitter

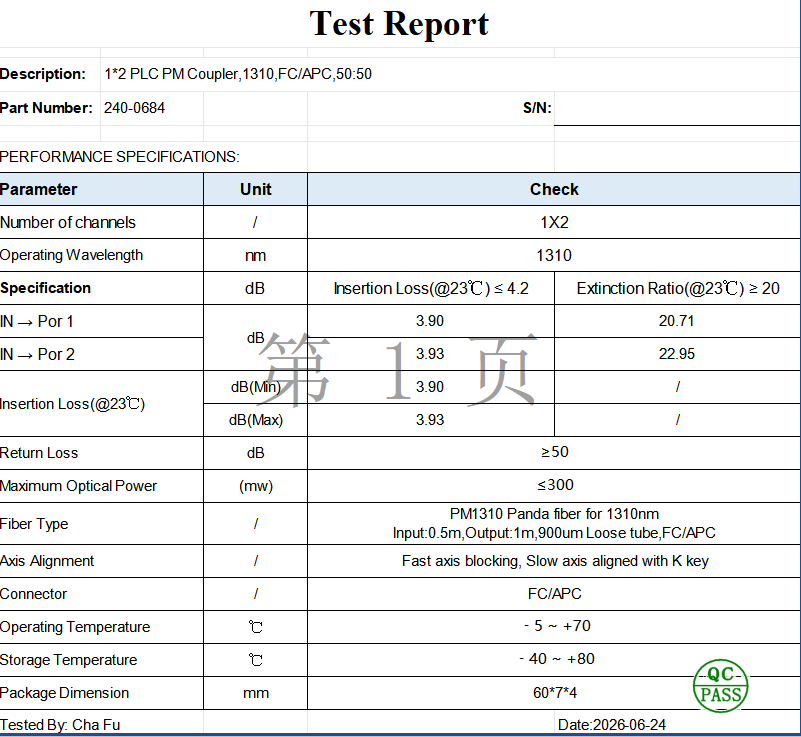

PM1310 1x2 PLC Splitter 50 50 Polarization Maintaining Optical Splitter Low Insertion Loss High Return Loss FC APC Images
